Drive Test with G-Net Track

Drive Test with G-Net Track Pro Application

            1. Introduction

• Location is at Kok Pich, Phnom Peng city.
• Choice Smart Site for doing the drive test
• Drawing road using Google Earth
• Methodology (2G,3G,4G)
• Using GNet Track Pro to do drive test and get the log file
• Using GNet Look to analyze the log files

            2. Site

            3. Google Earth

            4. Methodology

        A)   2G (GSM)

Drive Test	Methodology
Voice Sequence	Call Duration: 20s & pause between call: 5s 2G lock.
Data Sequence (DL/UL)	2G DL: Serial Test (5s interval, Data Size: 5MB, Repeat till test end). https://ipv4.download.thinkbroadband.com/5MB.zip 2G UL: Serial Test (5s interval, Data Size: 2MB, Repeat till test end). https://filebin.net/g4zm7oe8ysiat2ls 2G Lock

                        B)   3G (WCDMA)

Drive Test	Methodology
Voice Sequence	Call Duration: 20s & pause between call: 5s 3G lock.
Data Sequence (DL/UL)	3G DL: Serial Test (5s interval, Data Size: 100MB, Repeat till test end). http://ipv4.download.thinkbroadband.com/100MB.zip 3G UL: Serial Test ( 5s interval, Data Size: 20MB, Repeat till test end). https://filebin.net/g4zm7oe8ysiat2ls 3G lock

                        C) 4G (LTE)

Drive Test	Methodology
Voice Sequence	Call Duration: 20s & pause between call: 5s 4G lock.
Data Sequence (DL/UL)	4G DL: Serial Test (5s interval, Data Size: 1GB, Repeat till test end). http://ipv4.download.thinkbroadband.com/1GB.zip 4G UL: Serial Test (5s interval, Data Size: 200MB, Repeat till test end). https://filebin.net/g4zm7oe8ysiat2ls 4G lock

            5. GNet Track Pro

• GNet Track Pro is a wireless network monitor and drives test tool for Android OS devices. It allows monitoring and logging of mobile network parameters without using specialized equipment. It is a tool and it is a toy. It can be used by professionals to get a better insight into the network. Radio enthusiasts to learn more about wireless networks.

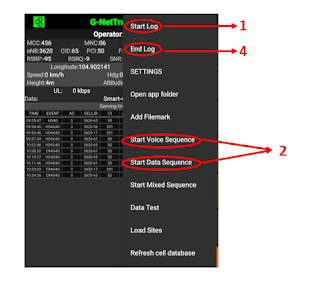

• How to use it?
1. Start Log: During this, the text and kml export files are created in G-NetTrack _Logs folder on the main phone storage
2. Star: DATA SEQUENCE or VOICE SEQUENCE
3. Drive follows the route as planned and it will record and pin on the map
4. Finished, End Log. Log Files are saved.

•  DATA SEQUENCE allows the test of data transfer

• VOICE SEQUENCE

            6.  Drive Test & Methodology

• 2G (GSM)
• Voice Sequence
• Data Sequence
• 3G (WCDMA)
• Voice Sequence
• Data Sequence
• 4G (LTE)
• Voice Sequence
• Data Sequence
• Note: (Drive test all Methodology has a video below)

            7. Get Log File and Open it in Google Earth

• After getting Log File from the Drive test we can open it in Google Earth to View all Data.

• Note: How to open File kml in Google Earth has a video below.

            8.  G-Net Look

• We Use G-Net Look to analyze Log File (text file) that get from the drive test.
• Link G-Net Look:  https://www.gyokovsolutions.com/G-NetLook/

• To see more information about Event, histogram of Level, Qual, SNR, CQI.....

• Note: Open Log File (file text) and Analyze in G-Net Look Web has a video below.

            9.  Result

• 2G (GSM)
• Voice Sequence

• Data Sequence

• 3G (WCDMA)
• Voice Sequence

• Data Sequence

• 4G (LTE)
• Voice Sequence

• Data Sequence

            10. Video for Point *Note

• Link Youtube:
• https://youtu.be/QC4ivNFcps8
